Motogadget Speedometer and Tachometer Gauge Cluster for the Triumph Bonneville, SE, T100, Thruxton and Scrambler

Motogadget Speedometer and Tachometer Gauge Cluster for the Triumph Bonneville, SE, T100, Thruxton and Scrambler

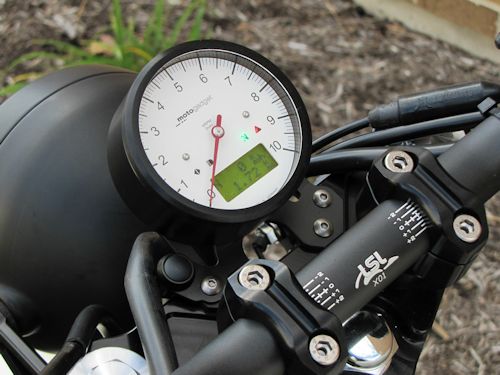

This kit combines parts from Motogadget and LSL to bring you a complete setup to replace the stock tachometer and speedometer with this ultra good looking and uber intuitive gauge.

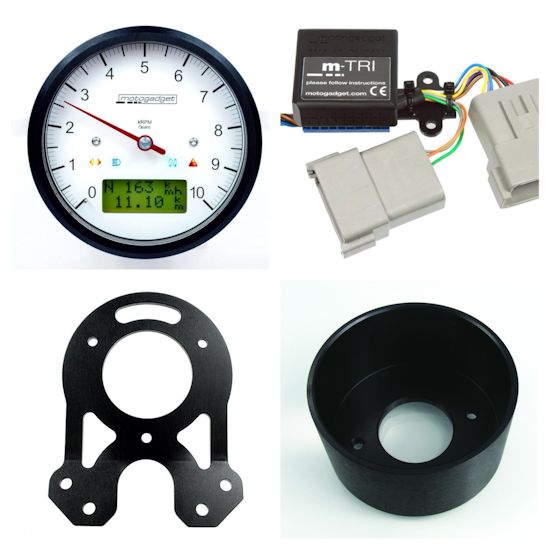

There are four main pieces to the kit. Two with brains and two with brawn. The brains of the operation are the MotoScope Classic Gauge and the m-TRI Control Unit. The utility parts are the LSL gauge bracket and Motogadget instrument cup.

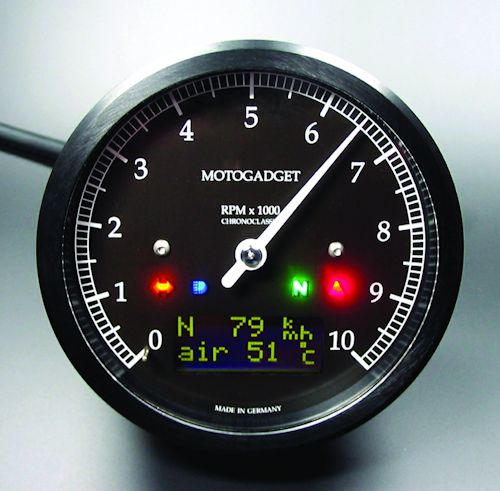

Motogadget MotoScope Classic Gauge

Reads both Miles Per Hour and Kilometers Per Hour

This gauge features a high-quality multifunctional instrument in a classic style housing with an analog engine speed indicator (stepper-motor driven) and a two-line display for all other functions. Temperature and pressure warning with High/Low thresholds. 4 indicator LEDs. Engine speed warning/gear shift light. Innovative background lighting (EL-foil). Original vehicle speedometer sensors can in most cases be used. Calibration of the speedometer is possible using an internal Teach Function.

Installation diameter 3.15 inch (80 mm), total diameter 3.35 inch (85 mm), depth 1.34 inch (34 mm) without screwed cable gland.
Weight 8.1 oz (230 gr) without cable.

Functions: analog rev counter with scales of 0-8/0-10/0-14 krpm and a numerical display up to 20 krpm, engine speed warning, speedometer, gear position indicator, trip odometer, total odometer (adjustable), trip time, voltage indication, acceleration 0-100 km/h, various average and maximum values, 2 temperature indicators and 1 pressure indicator etc. Speedo sensor included.

The m-TRI Control Unit

In the past, it was not possible to remove the original instruments on the Triumph Twin models (years 2011 and later) and Triple models (years 2006 and later). Except for the Breakout Box Triumph, exclusively designed for motoscope Pro, there was no way to operate a motogadget instrument.

Once the bulky original instrument was disconnected, the built-in CAN bus of these models instantly became inoperative. No mods were even possible.

The solution, specially designed for use with Twin models, has arrived: the m-TRI, exclusively by motogadget.

The m-TRI not only provides engine speed and ground speed, but also the signals for the indicator lights: left/right turn signal, low fuel indicator, error memory, high beam, neutral, water temp HIGH, oil pressure.
Note that some of the indicator lights on instruments with 4 or 5 LEDs are multi-functional.

Another big advantage is the foolproof installation. The original connector is used, and the cables for the instrument and indicator lights are connected to the terminals of the m-TRI with color codes. No soldering or cable detection. No changing the wiring harness. No voiding the vehicle warranty.
This simple installation is almost Plug and Play. It saves time ...and money. Easy to follow installation instructions are included.

Contact us for custom options such as black face, speedometer instead of tachometer for the main gauge, etc.

EFI Unit Fits 2011-2014 Bonneville, Scrambler and Thruxton.

Motogadget Gauge Cluster Kit, complete with MotoScope Classic 10K Gauge, m-TRI Control Unit, Motogadget Instrument Cup and LSL Mounting Bracket for FUEL INJECTED BIKES
$918.95
buynow

Kit for CARBURETED BIKES (Does NOT include the m-Tri Control Unit)
$719.95
buynow

**IMPORTANT**
During checkout, please make sure the correct model and year are entered into the “Bike Year and Model” field. Please note that the model year is not necessarily identical to the year of manufacture!
Identify the 11th digit from the left on the VIN number; this number/letter will give you the model year.

A = 2010

B = 2011

C = 2012

D = 2013

Motogadget Speedometer and Tachometer Gauge Cluster for the Triumph Bonneville, SE, T100, Thruxton and Scrambler
Motogadget Speedometer and Tachometer Gauge Cluster for the Triumph Bonneville, SE, T100, Thruxton and Scrambler

Black gauge available for $30 upcharge. Contact us for details.
